Features:

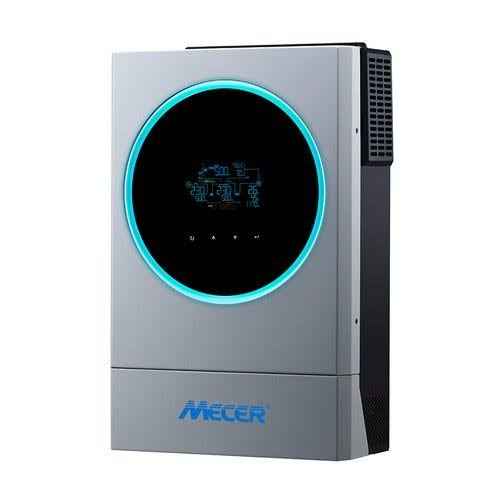

– Pure sine wave MPPT Solar Inverter

– Customizable status LED ring with RGB lights

– Touchable button with large 4.3-colored LCD

– Wide DC input range

– Supports USB On-the-Go function

– Data log events stored in the inverter

– Built-in Wi-Fi for mobile monitoring (Android/iOS App available)

– Reserved communication port for BMS

– Battery-independent function

– Parallel operation with up to 9 units

– Rated power 5600va/5600w

– Voltage 230 vac

Selectable voltage range:

– 170-280 vac (for personal computers)

– 90-280 vac (for home appliances)

– Frequency range 50Hz/60 Hz (auto sensing)

Output:

– Ac voltage regulation (batt. Mode) 230 vac +/- 5%

– Overload capacity 5s at ?150% load; 10s at 110%~150% load; 100ms at ?200% load

– Efficiency (peak) 93 %

– Transfer time 10ms (for personal computers) ; 20ms (for home appliances)

– Waveform pure sine wave

– Dual outputs -Yes

Battery:

– Battery voltage 48 vdc

– Floating charge voltage 54 vdc

– Overcharge protection 66 vdc

Solar charger & AC charger:

– Solar charger type MPPT 6000w

– MPPT range at operating voltage 120 ~ 430 vdc

– Maximum pv array open circuit voltage 450 vdc

– Maximum solar charge current 120a

– Maximum ac charge current 120a

Operating Environment:

– Humidity 5% to 95% relative humidity(non-condensing)

– Operating temperature -10 Degree C to 50 Degree C

– Storage temperature -15Degree C to 60 – Degree C

What’s in the box

1 x Inverter

1 x Cable

1 x DVD

1 x User Manual
